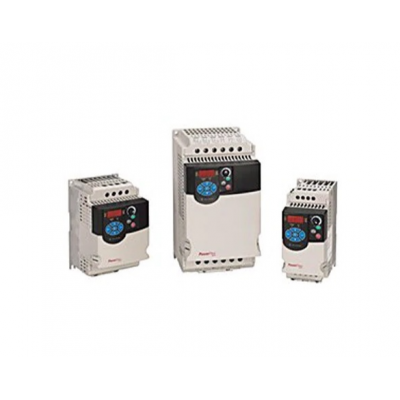

AB变频器PowerFlex 4M系列

PowerFlex 4M交流变频器是PowerFlex 变频器系列中z小、z经济实用的成员。馈通接线和简易编程使各种应用项目的处理非常灵活。

产品特性

额定功率:

>100到120V: 0.2到1.1kW/0.25到1.5Hp/1.6到6A

>200到240V: 0.2到7.5kW/ 0.25到10Hp/ 1.6到33 A

>380到480V:0.4到11kW/0.5到15Hp/1.5到24A

（1）IP20、NEMA/UL 开放式机壳、V/Hz 控制、滑差补偿

（2）集成式RS-485通信

（3）馈通接线

（4）可在A和B框架驱动器上进行DIN导轨安装

（5）z小变频器间距所允许的环境温度高达50 °C (122 °F)

（6）Zero Stacking变频器所允许的环境温度高达40 °C (104 °F)

（7）变频器过载保护和斜坡调节

（8）通过集成LCD键盘、远程键盘或软件进行配置和编程

（9）与PowerFlex交流变频器进行的源代码级集成采用Logix控制平台来简化参数和标记编程并缩短开发时间

产品选型

Catalog Number Description

（1） 22F-A011N103 PowerFlex4M AC Drive, 240VAC, 1PH, 11 Amps, 2.2 kW, 3 HP,frame Size B, 1P20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake D

（2） 22F-A011N113 PowerFlex4M AC Drive, 240VAC, 1PH, 11 Amps, 2.2 kW, 3 HP,frame Size B, 1P20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, N

（3） 22F-A1P6N103 PowerFlex4M AC Drive, 240VAC, 1PH, 1.6 Amps, 0.2 kW, 0.25 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brak

（4）22F-A1P6N113 PowerFlex4M AC Drive, 240VAC, 1PH, 1.6 Amps, 0.2 kW, 0.25 HP,frame Size A, 1P20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filte

（5）22F-A2P5N103PowerFlex4M AC Drive, 240VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP,frame Size A, P20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brak

（6）22F-A2P5N113PowerFlex4M AC Drive, 240VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filte

（7）22F-A4P2N103 PowerFlex4M AC Drive, 240VAC, 1PH, 4.2 Amps, 0.75 kW, 1 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake

（8）22F-A4P2N113 PowerFlex4M AC Drive, 240VAC, 1PH, 4.2 Amps, 0.75 kW, 1 HP,frame Size A, 1P20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter,

（9）22F-A8P0N103 PowerFlex4M AC Drive, 240VAC, 1PH, 8 Amps, 1.5 kW, 2 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Dri

（10）22F-A8P0N113 PowerFlex4M AC Drive, 240VAC, 1PH, 8 Amps, 1.5 kW, 2 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, Nc

（11）22F-B012N103PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 12 Amps, 2.2 kW, 3 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Br

（12）22F-B017N103 PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 17 "Amps, 3.7 kW, 5 HP ,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Br

（13）22F-B025N104PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 25 Amps, 5.5 kW, 7.5 HP ,frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS4

（14）22F-B033N104 PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 33 Amps, 7.5 kW, 10 HP,frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS4k

（15）22F-B1P6N103 PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 1.6 Amps, 0.2 kW, 0.25 HP frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, N

（16）22F-B2P5N103 PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 2.5 Amps, 0.37 kW, 0.5 HP .frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, N,

（17）22F-B4P2N103 PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 4.2 Amps, 0.75 kW, 1 HP,frame Size A, P20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No

（18）22F-B8P0N103 PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 8 Amps, 1.5 kW, 2 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Bra

（19）22F-D013N104 PowerFlex4M AC Drive, 480VAC, 3PH, 13 Amps, 5.5 kW, 7.5 HP,frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

（20）22F-D013N114 PowerFlex4M AC Drive, 480VAC, 3PH, 13 Amps, 5.5 kW, 7.5 HP,frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter,

（21）22F-D018N104 PowerFlex4M AC Drive, 480VAC, 3PH, 18 Amps, 7.5 kW, 10 HP ,frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

（22）22F-D018N114 PowerFlex4M AC Drive, 480VAC, 3PH, 18 Amps, 7.5 kW, 10 HP,frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter,

（23）22F-D024N104 PowerFlex4M AC Drive, 480VAC, 3PH, 24 Amps, 11 kW, 15 HP,frame Size C, 1P20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

（24）22F-D024N114 PowerFlex4M AC Drive, 480VAC, 3PH, 24 Amps, 11 kW, 15 HP. frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, 1

（25）22F-D1P5N103 PowerFlex4M AC Drive, 480VAC, 3PH, 1.5 Amps, 0.37 kW, 0.5 HP,frame Size A, 1P20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brak

（26）22F-D1P5N113 PowerFlex4M AC Drive, 480VAC, 3PH, 1.5 Amps, 0.37 kW, 0.5 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filte

（27）22F-D2P5N103 PowerFlex4M AC Drive, 480VAC, 3PH, 2.5 Amps, 0.75 kW, 1 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake

（28）22F-D2P5N113 PowerFlex4M AC Drive, 480VAC, 3PH, 2.5 Amps, 0.75 kW, 1 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter,

（29）22F-D4P2N103 PowerFlex4M AC Drive, 480VAC, 3PH, 4.2 Amps, 1.5 kW, 2 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake [

（30）22F-D4P2N113 PowerFlex4M AC Drive, 480VAC, 3PH, 4.2 Amps, 1.5 kW, 2 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter,↑

（31）22F-D6P0N103 PowerFlex4M AC Drive, 480VAC, 3PH, 6 Amps, 2.2 kW, 3 HP, frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Dri

（32）22F-D6P0N113 PowerFlex4M AC Drive, 480VAC, 3PH, 6 Amps, 22 kW, 3 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, Nc

（33）22F-D8P7N103 PowerFlex4M AC Drive, 480VAC, 3PH, 8.7 Amps, 3.7 kW, 5 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake [

（34）22F-D8P7N113 PowerFlex4M AC Drive, 480VAC, 3PH, 8.7 Amps, 3.7 kW, 5 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, '

（35）22F-V1P6N103 PowerFlex4M AC Drive, 120VAC, 1PH, 1.6 Amps, 0.2 kW, 0.25 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brak

（36）22F-V2P5N103 PowerFlex4M AC Drive, 120VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP,frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brak

（37）22F-V4P5N103 PowerFlex4M AC Drive, 120VAC, 1PH, 4.5 Amps, 0.75 kW, 1 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake

（38）22F-V6P0N103 PowerFlex4M AC Drive, 120VAC, 1PH, 6 Amps, 1.1 kW, 1.5 HP,frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake
