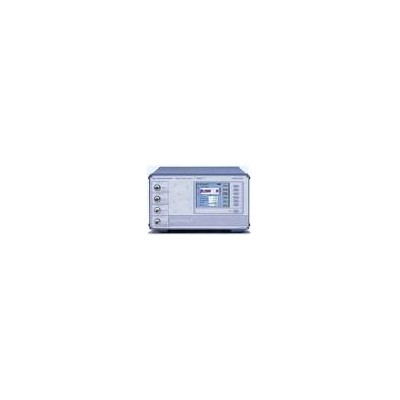

租售CTS60 收购CTS60 综合测试仪

租售CTS60 收购CTS60 综合测试仪

东莞市保发通用仪器有限公司
联系人：熊先生
手机：15820822669（微信同号）
QQ：623511571
传真：0769-87500340
邮箱：623511571@qq.com

长期高价现金回收二手仪器 长期上门收购二手网络分析仪、二手频谱仪、二手信号发生器、二手电子负载、二手频率计、二手射频功率计、二手综合测试仪、二手音频分析仪、二手信号源等高频仪器。资金充裕，单台或大批收购！国内上门回收，中介重酬



DECT电话(手提式和固定式) 通过软键进行菜单控制 ,TFT彩色显示 菜单有6种语言 紧缩式、坚固的设计,重量轻 动态范围: DECT>60dB 内置草靠示波器TCXO或OCXO GSM和DECT的RF输入/输出合并 通过附加的输入/输出的DECT断线测量 通过RS232-C实现远控测量 内置草靠示波器TCXO或OCXO 通过RS232-C实现远控测量
技术指标
?GSM signal generator Built-in reference oscillator standard
Frequency drift in temperature range +5℃to 40℃ ≤1*10^-6
Aging ≤0.5*10^-6/yearat 35℃
GSM

Frequency range GSM900 band 935MHz to 960 MHz
GSM1800 band 1805MHz to 1880 MHz
GSM 1900 band 1930MHzto 1990 MHz
Resolution GSMchannel spacing 200 kHz
Outputlevel
RFIN/OUT with 0 dB ext.attenuation -50dBm to -110 dBm
RF OUT2 GSM with 0 dB ext.attneuation -15dBmto -75dBm
Level error RF IN/OUT ≤1.5dBm
RF OUT2 GSM ≤2.0dBm
Modulation GMSK,BxT=0.3
Norrowband Spectoum Monitor Option CTS-B7
Span 300kHz
Resolutionbandwidth 4/10/20/50/100kHz
Dynamic range (p>5dBm)
Δf=0kHz to 30 kHz typ:35dBc
Δf=30kHz to 150 kHz typ:50dBc
Morkers 3marders and delta-marker
GSM peak power meter
Frequency range GSM900band 890 MHz to 915 MHz
GSM1800band 1710MHz to 1785 MHz
GSM1900 band 1850MHzto 1910 MHz
Level range -15dBmto 39 dBm(peak values up to 41 dBm)
GSMmeasurement of phase and frequency error
Frequencyrange GSM900 band 890 MHz to 915 MHz
GSM1800 band 1710MHzto 1785 MHz
GSM1900 band 1850MHzto 1910 MHz
Reference level forfull dynamic range with 0 dB ext.
attenuation 0dBm to +39(pead values up to 41 dBm)
Dynamicrange (p>5 dBm) ≥55dB
Resolution 0.1dB
DECT
DECT signal generator
Frequency range 1876.608MHzto 1935.360 MHz and half channels
Frequency drift somean reference oscillator
Outputlevel
RFIN/OUT -100 dBm to -40dBm
RF OUT2 DECT (-20 dBm to dBm if RF IN2DECTis active)
useable up to 5 dBm
Level error ≤1.5dB
RF IN/OUT ≤2.0dB
RF OUT2 DECT GFSK(BxT=0.5)
DECT analyzer
Frequency range some as signal generator
Measurement range with0 dB external attenuation
RF IN/OUT 30dBm to -30dBm
RF IN2 DECT -35dBmto -55dBm
FM demodulator
Frequency range 0kHzto 450kHz
Resolution 4kHz
DC offset <3kHz
Residual FM
RFIN/OUT <15kHz,peak,95% confidencre
(30dBm to 5 dBm)
<5kHz,peak,95%
confidencre
(30dBm to 15dBm)
RF IN2 DECT <15kHz,peak,95%
confidencre
(-35 dBmto 15dBm)
<15kHz,peak,95%
confidencre
(-35dBmto -40 dBm)
Level meter
Range
RFIN/OUT 30dBm to -30dBm
RFIN2 DECT -35dBm to -55 dBm
Dynamicrange ≥60dB (for p=24dBm)
Resolution 0.5dB
Accuracy
RF IN/OUT <1dB+resolution(30dBm
to 5 dBm)
<2dB+resolution(<5dBm)
