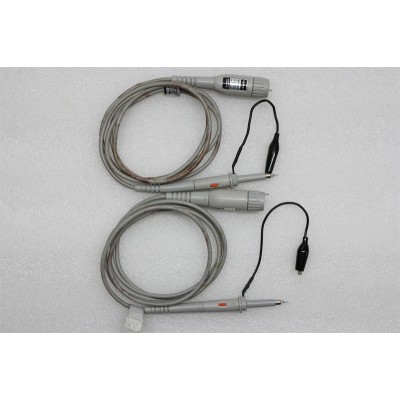

10073C安捷伦示波器探头

Agilent 10073C示波器探头

10073C安捷伦示波器探头 JIANG

Bandwidth: 500 MHzSystem risetime (calculated): <700 ps Attenuation Ratio: 10:1 Inputresistance: 2.2 MΩ (when terminated into 1 MOhm)

The Agilent 10073Cpassive probe is our most rugged 500 MHz probe. With a 10:1 attenuation ratioand high 2.2 M ohm input impedance, it is ideal as a general purpose, highbandwidth passive probe for the Agilent 300 MHz - 1 GHz 6000 series, 7000, 8000and 9000 Series oscilloscopes. The probe identification feature automaticallyconfigures the oscilloscope for the probe attenuation.

The followingaccessories are included: retractable hook tip; orange, white, blue and greenidentification tags; ground bayonet, IC probing tip, adjustment tool and analligator clip ground lead.

·        Bandwidth: 500 MHz

·        System risetime (calculated): <700 ps

·        Attenuation Ratio: 10:1

·        Input resistance: 2.2 MΩ (when terminated into 1 MOhm)

·        Input capacitance: ~12 pF

·        Maximum input (dc peak ac): 500 V CAT I (mainsisolated) 300 V CAT II (post receptacle mains)

·        Compensation range: 6 - 15 pF
