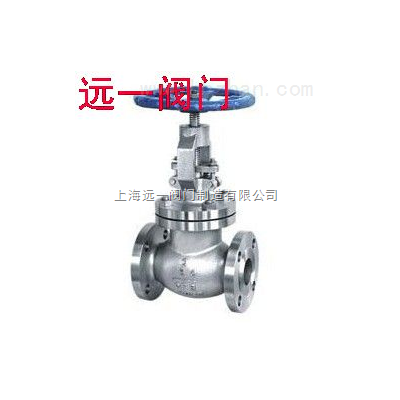

不锈钢美标截止阀AJ41W-150LB/300LB600LB
J41W-150LB/300LB/600LB不锈钢美标截止阀适用于工作温度-29～550℃的石油、化工、制药、化肥、电力行业等各种工况的管路上，切断或接通管路介质。驱动方式有手动、齿轮传动、电动、气动等。
设计标准
|
设计与制造 Design and Manufacture
|
结构长度 Face to face/ End to end
|
法兰尺寸 Flange Dimension
|
对焊连接尺寸Butt welding dimension
|
压力-温度 Pressure Temperature Lating
|
试验-检验Inspection and Test
|
|
ANSI B16.34 BS1873
|
ANSI B16.10
|
ANSI B16.5
|
ANSI B16.25
|
ANSI B16.34
|
API 598
|
压力试验
|
公称压力PN（Lb）
NominalPressure |
强度试验
Shell Test |
水密封试验
Water Seal Test |
气密封试验
Air Seal Test |
|||
|
MPa
|
Lbf/in2
|
MPa
|
Lbf/in2
|
MPa
|
Lbf/in2
|
|
|
150
|
3.0
|
430
|
2.2
|
315
|
0.4-0.7
|
60-100
|
|
300
|
7.7
|
1110
|
5.7
|
815
|
||
|
600
|
15.3
|
2220
|
11.3
|
1630
|
||
|
900
|
23.0
|
3330
|
17.0
|
2445
|
||
|
1500
|
38.4
|
5560
|
28.2
|
4080
|
||
|
2500
|
64.0
|
9255
|
47.0
|
6790
|
||
主要零件材料及性能
|
体、盖
Body Cover Disc |
阀杆
Stem |
密封面
Sealing Face |
垫片（环）
Sealing Shim |
填料
Packing |
工作温度Working Temperature
|
适用介质
Suitable Medium |
|
WCB
|
2Cr13
|
13Cr
STL 木体材料 With Body Material 尼龙 Nylon |
增强柔性石墨
13Cr/柔性石墨 Enhanced Flexible Graphite 1Cr13/Flexible Graphite SFB-2 08软钢 08 Soft Steal F304 F316 F304L F316L |
柔性石墨
增强柔性石墨 Flexible Graphite Enhanced Flexible Graphite SFB/260 SFP/260 PTFE |
≤425
|
水 蒸汽 油品
Water Steam Petroleum Products |
|
WC1
|
38CrMoAl 25Cr2MoV
|
≤425
|
||||
|
WC6
|
≤540
|
|||||
|
WC9
|
≤570
|
|||||
|
C5 C12
|
≤540
|
|||||
|
CF8
|
F304
|
≤200
|
硝酸 醋酸 尿素
Nitric acid Acetic acid |
|||
|
CF8M
|
F316
|
|||||
|
CF3
|
F304L
|
|||||
|
CF3M
|
F316L
|
主要尺寸和重量
|
DN
|
150Lb 凸面法兰（RF） 主要尺寸Dimensions（mm）
|
重量
Weight |
||||||||
|
mm
|
in
|
L
|
D
|
D1
|
D2
|
b
|
n-φd
|
H
|
D0
|
|
|
15
|
1/2
|
108
|
89
|
60.5
|
35
|
11.2
|
4-16
|
241
|
100
|
6.9
|
|
20
|
3/4
|
117
|
98
|
69.9
|
43
|
12.7
|
4-16
|
241
|
100
|
9.8
|
|
25
|
1
|
127
|
108
|
79.2
|
51
|
14.2
|
4-16
|
242
|
125
|
13.5
|
|
32
|
11/4
|
140
|
117
|
89
|
63
|
16
|
4-16
|
280
|
160
|
19.5
|
|
40
|
11/2
|
165
|
127
|
98.6
|
73
|
17.5
|
4-16
|
286
|
160
|
28.5
|
|
50
|
2
|
203
|
152
|
120.7
|
92
|
19
|
4-19
|
368
|
200
|
18
|
|
65
|
21/2
|
216
|
178
|
139.7
|
105
|
22.4
|
4-19
|
387
|
200
|
30
|
|
80
|
3
|
241
|
190
|
152.4
|
127
|
24
|
4-19
|
411
|
250
|
41
|
|
100
|
4
|
292
|
229
|
190.5
|
157
|
24
|
4-19
|
454
|
250
|
64
|
|
125
|
5
|
356
|
254
|
216.0
|
186
|
24
|
8-22.5
|
455
|
350
|
86
|
|
150
|
6
|
406
|
279
|
241.3
|
216
|
25.4
|
8-22.5
|
541
|
350
|
113
|
|
200
|
8
|
495
|
343
|
298.5
|
270
|
28.4
|
8-22.5
|
651
|
450
|
178
|
|
250
|
10
|
622
|
406
|
362.0
|
324
|
30.2
|
12-25.4
|
800
|
450
|
270
|
|
300
|
12
|
698
|
483
|
431.8
|
381
|
32
|
12-25.4
|
1231
|
600
|
350
|
|
350
|
14
|
787
|
533
|
476.3
|
413
|
35
|
12-29
|
1450
|
600
|
460
|
|
400
|
16
|
914
|
597
|
539.8
|
470
|
36.6
|
26-29
|
1645
|
600
|
590
|
主要尺寸和重量
|
DN
|
300Lb 凸面法兰（RF） 主要尺寸Dimensions（mm）
|
重量
Weight |
||||||||
|
15
|
1/2
|
152
|
95
|
66.5
|
35
|
14.2
|
4-16
|
241
|
140
|
7.7
|
|
20
|
3/4
|
178
|
117
|
82.5
|
43
|
16
|
4-19
|
241
|
140
|
11.3
|
|
25
|
1
|
203
|
123
|
89
|
51
|
17.5
|
4-19
|
283
|
160
|
16.8
|
|
32
|
11/4
|
216
|
133
|
98.5
|
63
|
19
|
4-19
|
320
|
200
|
21.2
|
|
40
|
11/2
|
229
|
155
|
114.3
|
73
|
20.6
|
4-22.5
|
322
|
200
|
32.6
|
|
50
|
2
|
267
|
165
|
127
|
92
|
22.4
|
8-19
|
399
|
200
|
25
|
|
65
|
21/2
|
292
|
190
|
149.4
|
105
|
25.4
|
8-22.5
|
438
|
250
|
30
|
|
80
|
3
|
318
|
210
|
168.1
|
127
|
28.4
|
8-22.5
|
464
|
280
|
35
|
|
100
|
4
|
356
|
254
|
200.2
|
157
|
31.8
|
8-22.5
|
565
|
350
|
56
|
|
125
|
5
|
400
|
279
|
235
|
186
|
35
|
8-22.5
|
614
|
350
|
96
|
|
150
|
6
|
444
|
318
|
269.7
|
216
|
36.6
|
12-25.4
|
717
|
400
|
120
|
|
200
|
8
|
559
|
381
|
330.2
|
270
|
41.2
|
12-25.4
|
930
|
500
|
212
|
|
250
|
10
|
622
|
444
|
387.4
|
324
|
47.8
|
16-28.5
|
1012
|
550
|
330
|
|
300
|
12
|
711
|
521
|
450.8
|
381
|
50.8
|
16-32
|
1231
|
600
|
472
|
|
350
|
14
|
762
|
584
|
514.4
|
413
|
54
|
20-32
|
1450
|
600
|
715
|
|
400
|
16
|
864
|
648
|
571.5
|
470
|
57.2
|
20-35
|
1645
|
600
|
920
|
主要尺寸和重量
|
DN
|
600Lb 凸面法兰（RF） 主要尺寸Dimensions（mm）
|
重量
Weight |
||||||||
|
mm
|
in
|
L
|
D
|
D1
|
D2
|
b
|
n-φd
|
H
|
D0
|
|
|
15
|
1/2
|
165
|
95
|
66.5
|
35
|
14.5
|
4-16
|
285
|
100
|
7.8
|
|
20
|
3/4
|
190
|
117
|
82.5
|
43
|
16
|
4-19
|
285
|
125
|
12.5
|
|
25
|
1
|
216
|
124
|
89
|
51
|
17.5
|
4-19
|
313
|
160
|
17.5
|
|
32
|
11/4
|
229
|
133
|
98.5
|
63
|
21
|
4-19
|
328
|
160
|
23.5
|
|
40
|
11/2
|
241
|
156
|
114.3
|
73
|
22.5
|
4-22.5
|
365
|
180
|
38.5
|
|
50
|
2
|
292
|
165
|
127
|
92
|
33
|
8-19
|
444
|
200
|
35
|
|
65
|
21/2
|
330
|
190
|
149.4
|
105
|
36
|
8-22.5
|
483
|
250
|
50
|
|
80
|
3
|
356
|
210
|
168.1
|
127
|
39
|
8-22.5
|
533
|
250
|
60
|
|
100
|
4
|
432
|
273
|
216
|
157
|
45
|
8-25.4
|
622
|
350
|
110
|
|
125
|
5
|
508
|
330
|
266.7
|
186
|
52
|
8-28.5
|
750
|
350
|
200
|
|
150
|
6
|
559
|
356
|
292.1
|
216
|
55
|
12-28.5
|
800
|
450
|
230
|
|
200
|
8
|
660
|
419
|
349.3
|
270
|
63
|
12-32
|
927
|
500
|
410
|
|
250
|
10
|
787
|
508
|
431.8
|
324
|
71
|
16-35
|
1257
|
600
|
625
|
|
300
|
12
|
838
|
559
|
489
|
381
|
74
|
20-35
|
1468
|
680
|
860
|
